Bigsby B700 Specifications

  • Model Name: B-700
  • Series: Lightning Series II
  • Manufacturing Method: Die Cast
  • Manufacturing Material: Aluminum
  • Approximate weight: 345 grams/ 12.2 oz.
  • Overall Length: 8 5/8”/ 219.1 mm
  • Overall Width: 3 3/4”/95.3 mm
  • Arm adjusts with 1/8” Allen wrench and 5/16” socket wrench

*Designed for use on arched top electric guitars

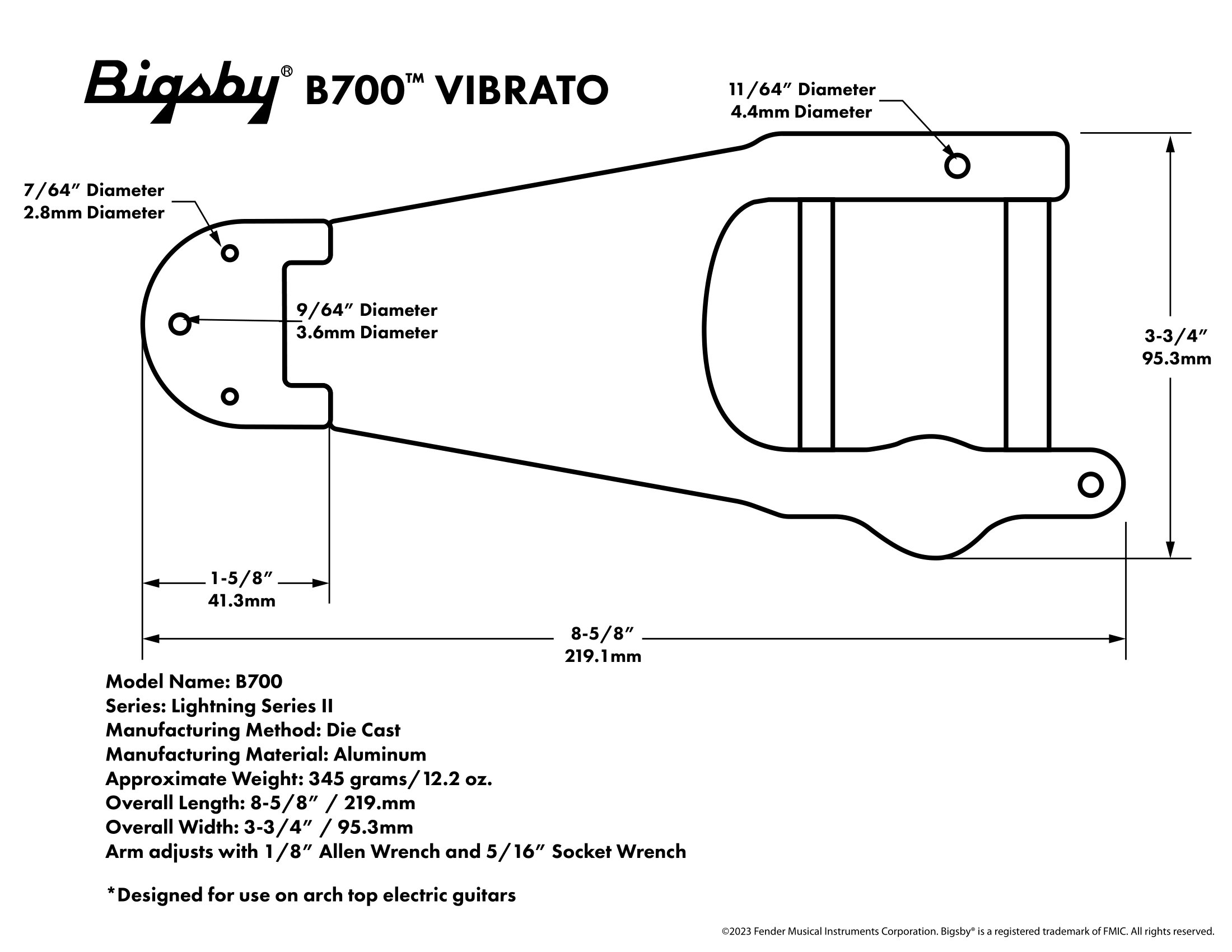

*Reproduction Blueprint – Click for Detail
